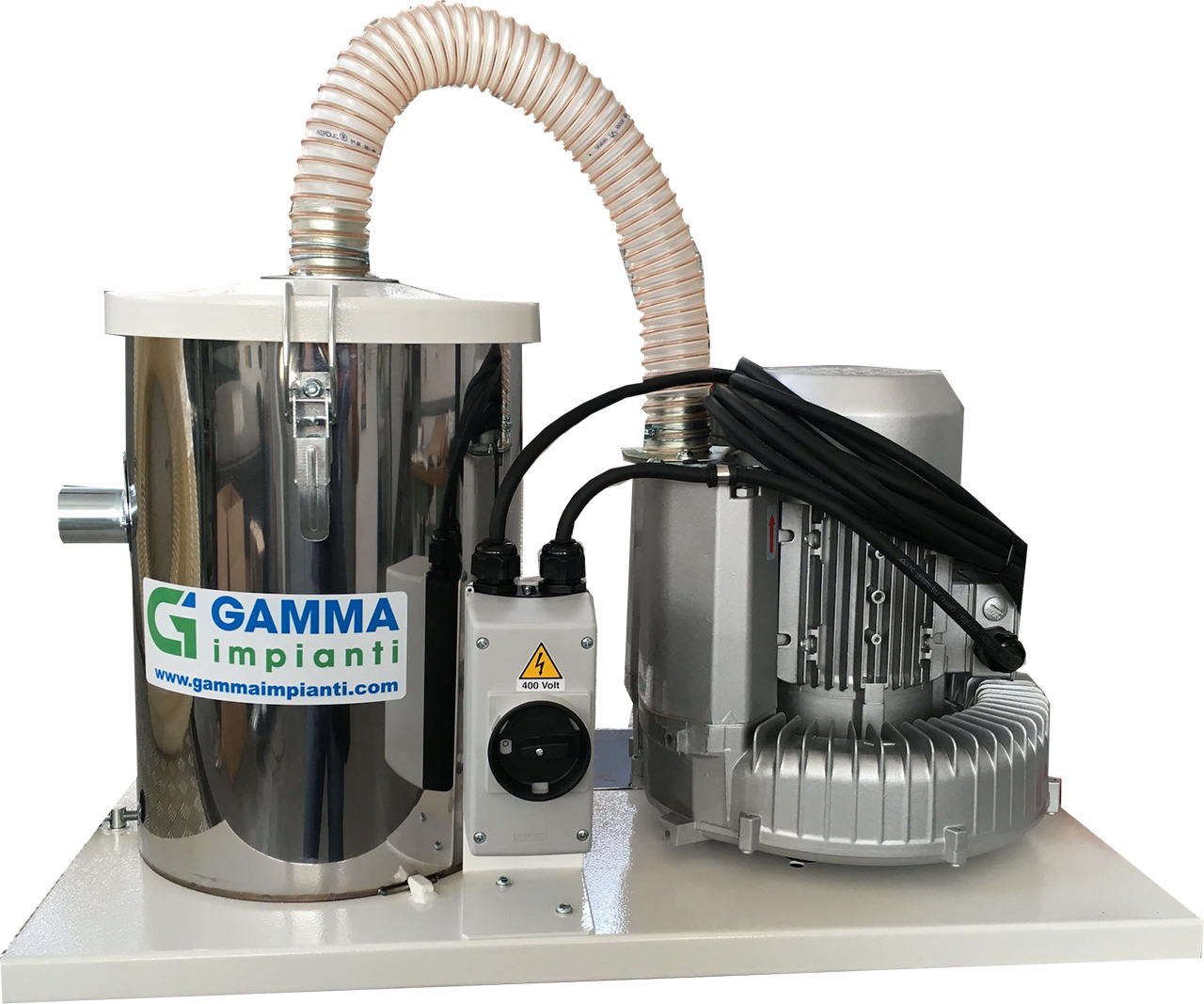

HVM150 high-pressure cartridge purifier

High pressure cartridge HVM150 purifier

HVM series can be applied directly on production lines or in other professional contexts thanks to its performance and compact sizes, eliminating up to 99,999% of fine powders.

Structure

  • robust support plate 770×410 mm
  • lateral channel blower of die-cast aluminium and directly coupled to a three-phase engine
  • 10 lt AISI430 container with quick release system
  • polyester filtering cartridge with 99.999% efficiency
  • 50 mm diam. extraction hose attachment

Technical data

Engine: 1.5 KW 220/400 Volt. 50 Hz. Phase
Rated flow: 210 m3/h
Max vacuum: 200 mbar
Sup. Filter: 1,300 cm2
Sound level: 64 dBA
Size: 770x410xH430 mm
Overall weight: 36 kg

Thanks to the AISI 430 container with quick release system, management of sucked powder is fast and easy.



filtro a cartuccia in poliestere per fumi e polveri

polyester cartridge filter for fumes and powders
